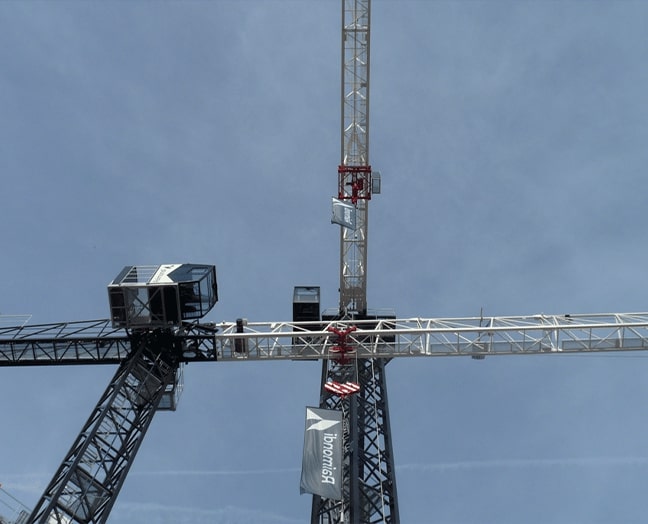

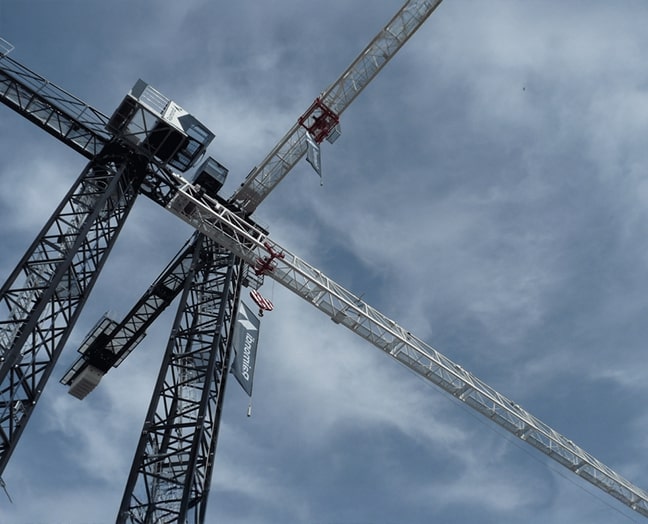

The T187 is a weight-optimized flat-top belong to Raimondi’s latest flat-top tower crane series – Class 110. With a maximum lifting capacity of 10t at two fall-configuration the topless has a tip load of 1.61 in Ultra Lift at a maximum jib length of 67.5m. Conceptualized by having in mind the rental fleet companies, the crane presents optimized components supporting interchangeability amongst parts.
Available also with a maximum lifting capacity of 8t, the T187 finds its perfect placement in both residential as well as infrastructural jobsites especially in the Central regions of the European market
| Technical Data | Metric | Imperial |
|---|---|---|
| Max Lifting Capacity | 10T | 22,046LB |
| Max Radius | 67.5M | 221,4FT |
| Lifting Capacity At Max Radius | 1.61T | 3549,7LB |
| Falls | 2/4 | |
| Hoist Power | 30/37kW | 54hp |
